5 Axis CNC Machining Center Accessories

Raydon Group's 5 Axis CNC Machining Center Accessories: Enhance precision and efficiency for engineers and manufacturers. Crafted from durable materials with advanced design, these tools ensure reliable performance in complex machining tasks, offering superior accuracy and time savings. Experience confidence and innovation—perfect for industrial applications seeking cutting-edge solutions.

Send Inquiry

Product Description

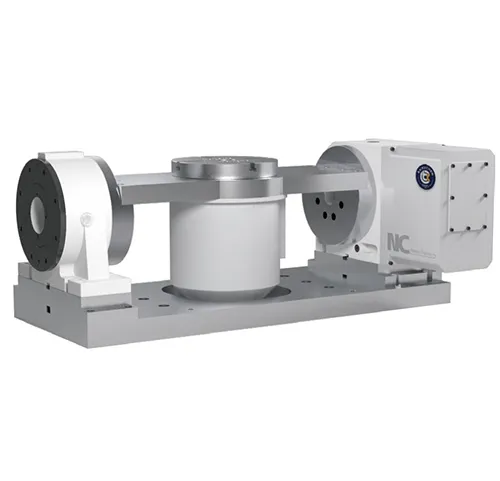

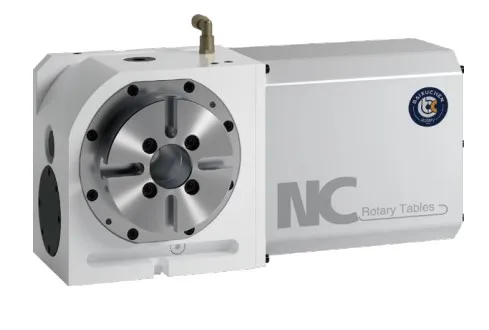

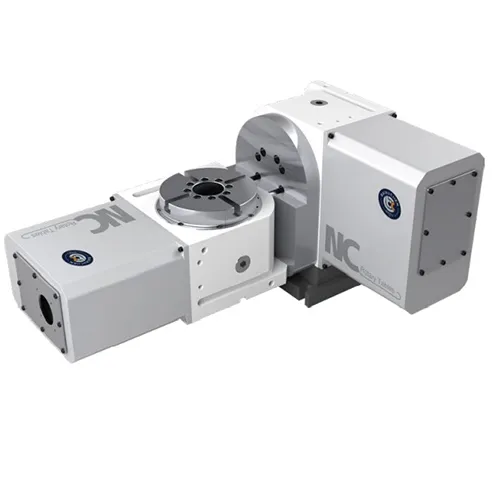

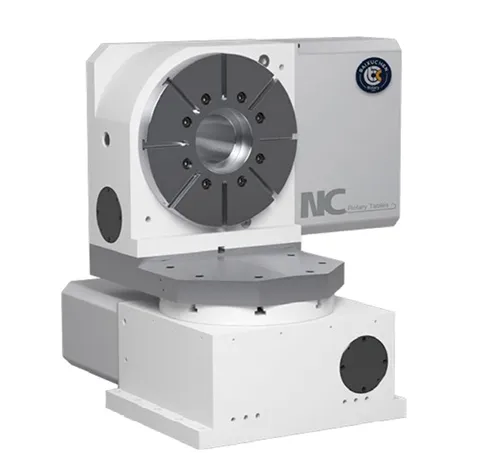

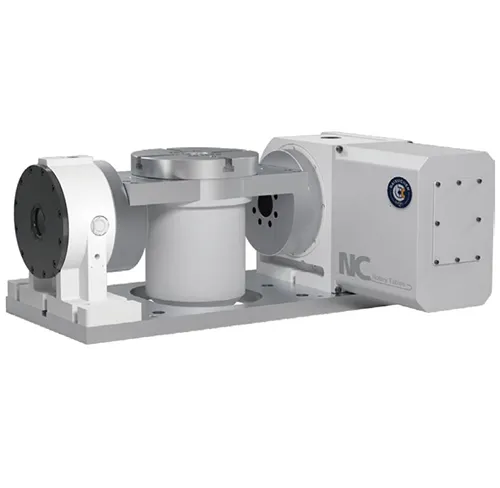

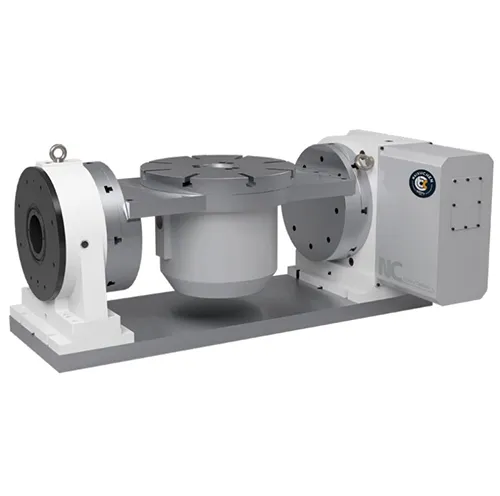

RTS-500 small industrial cnc machining center 5 axis accessories for numerical control machine

Characteristic

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

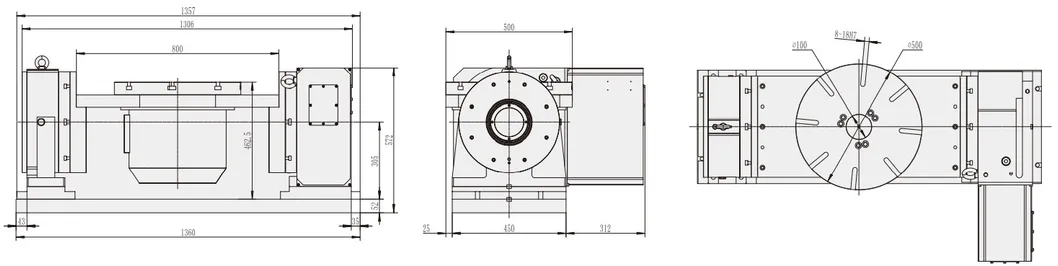

Product Model	RTS-500	Servo motor (optional)	Rotation axisβ 22iFANUC;Tilt axisβ 22iFANUC
Panel Size	500mm	Reduction Ratio	Rotation axis1:145 ;Tilt axis1:120
Disk Aperture	50mm	Maximum Rotation Speed Of Worktable	20r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	462.5mm	Locking torque of rotating shaft	Rotation axis7840N.m;Tilt axis1800N.m
90° Time Center Height	305mm	Brake Pressure	Rotation axis pressure Motor+Machinery;Tilt axis oil pressure 35Kg/cm²
Net Weight (about)	650Kg	Allowable Cutting Force	Rotation axis300Kgf-m;Tilt axis170Kgf-m
Horizontal placement	400KG	Ninety ° Time	200KG
