5 Axis CNC Machining Center Parts

Raydon Group's 5 Axis CNC Machining Center Parts deliver precision engineering for complex manufacturing needs, ensuring durability and superior performance in aerospace, automotive, and medical industries—experience unmatched accuracy and reliability that transforms production efficiency.

Send Inquiry

Product Description

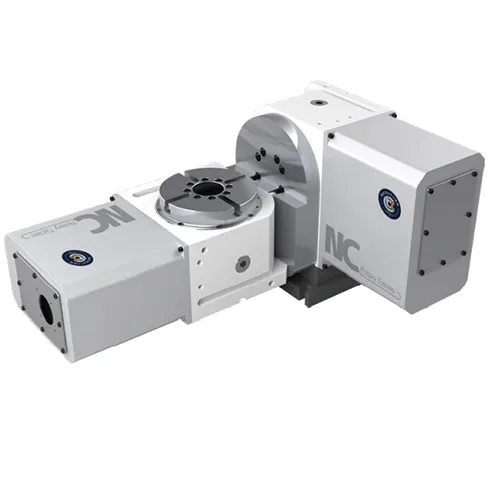

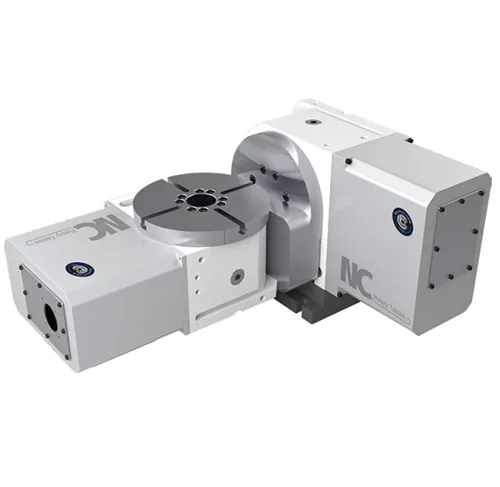

WT-S200 New Arrival Latest Design china metal industrial 5 axis cnc machining center accessories

Characteristic

Five axis linkage machining

High segmentation accuracy, high performance and high efficiency

Strong braking system, Optional hydraulic brake

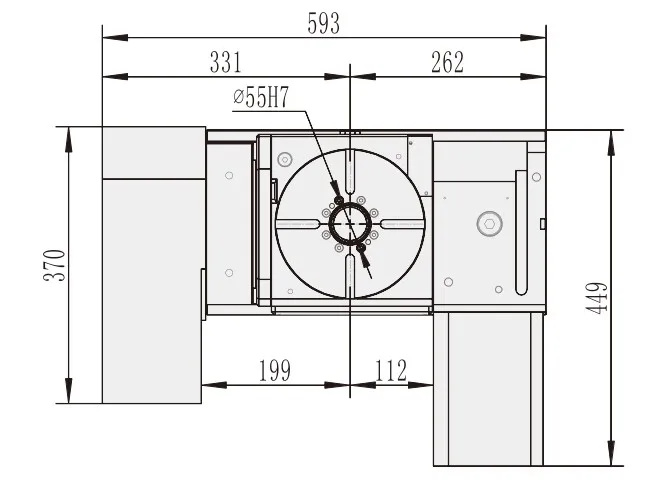

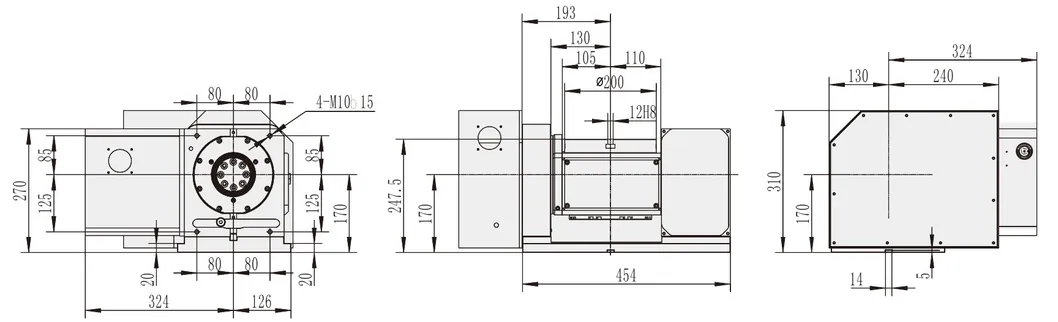

Product Model	WT-S200	Servo motor (optional)	Rotation axisβ4i HF-54;Tilt axisβ8i HF-104
Panel Size	Φ200mm	Reduction Ratio	Rotation axis1:90 ;Tilt axis1:90
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	Rotation axis 55.5r.p.m ;Tilt axis 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	247.5mm	Segmentation Accuracy	Rotation axis20″sec;Tilt axis30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
Positioning Button	14H7mm	Locking Method	Rotation axis pressure 5Kg/cm²;Tilt axis pressure5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 31Kg/m ;Tilt axis 31Kg/m
Net Weight (about)	155Kg	Allowable Cutting Force	Rotation axis 18Kg.m ;Tilt axis 18Kg.m
Horizontal placement	80KG	Placement	50KG

Wt-S200 New Arrival Latest Design China Metal Industrial 5 Axis CNC Machining Center Accessories
