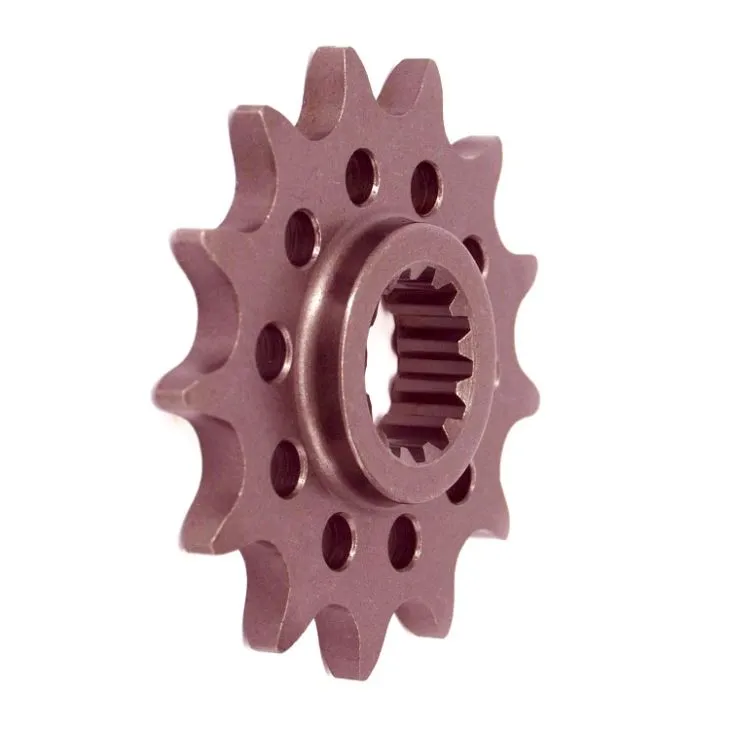

Case-Ih Conveyor Chain Sprocket

Discover the durable Case-Ih Conveyor Chain Sprocket by Raydafon Group, engineered for superior performance in agricultural machinery. Its precision design ensures smooth operation, boosting efficiency for farmers and reducing downtime. Experience reliability and enhanced productivity with this essential component.

Send Inquiry

Product Description

High Precious Weld Double Idler Sprocket Replacement of Case-IH Conveyor Chain Honda China Manufacturer

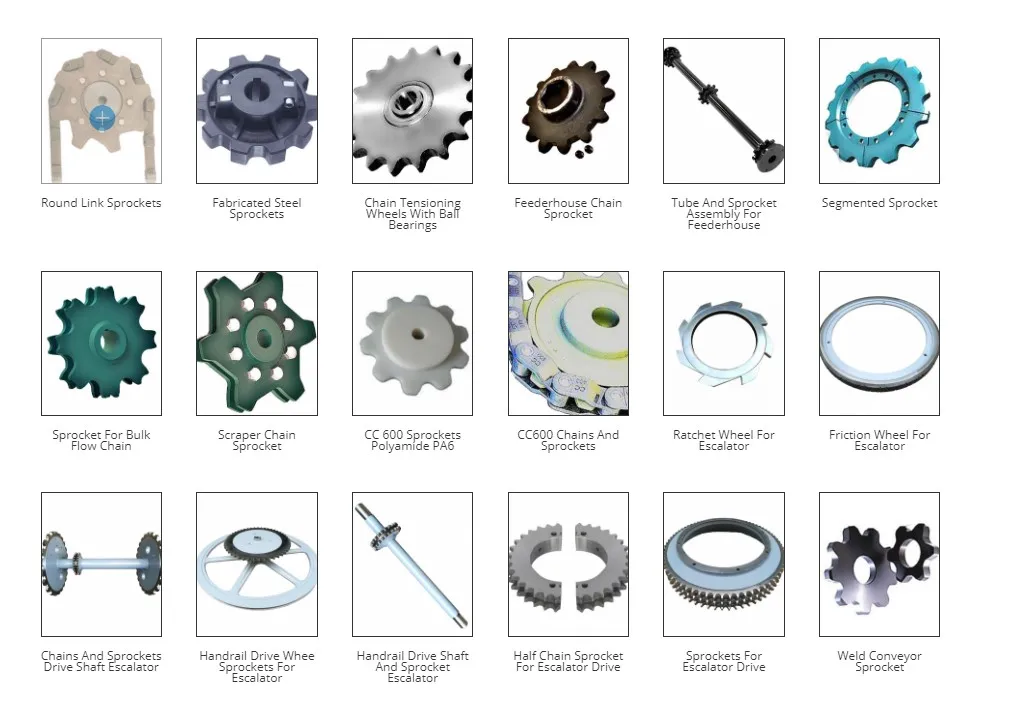

Manufacturer of Sprocket, Chain sprockets, wheel and sprocket, drive sprocket, sprocket wheel, taper lock sprocket, gear sprocket, idle sprocket, motorcycle sprocket and stainless steel sprocket, can interchange and replace with martin size sprocket, jt size sprockets, did size chain sprocket and so on.

European standard sprockets
DIN stock bore sprockets & plateheels	03B-1 04B-1 05B-1-2 06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3
DIN stock bore sprockets & plateheels	03A-1 04A-1 05A-1-2 06A-1-2-3 081A-1 083A-1/084A-1 085A-1 086A-1 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3
DIN finished bore sprockets	06B-1 08B-1 10B-1 12B-1 16B-1 20B-1
stainless steel sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
taper bore sprockets	3/8"×7/32" 1/2"×5/16" 5/8"×3/8" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
cast iron sprockets	06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3

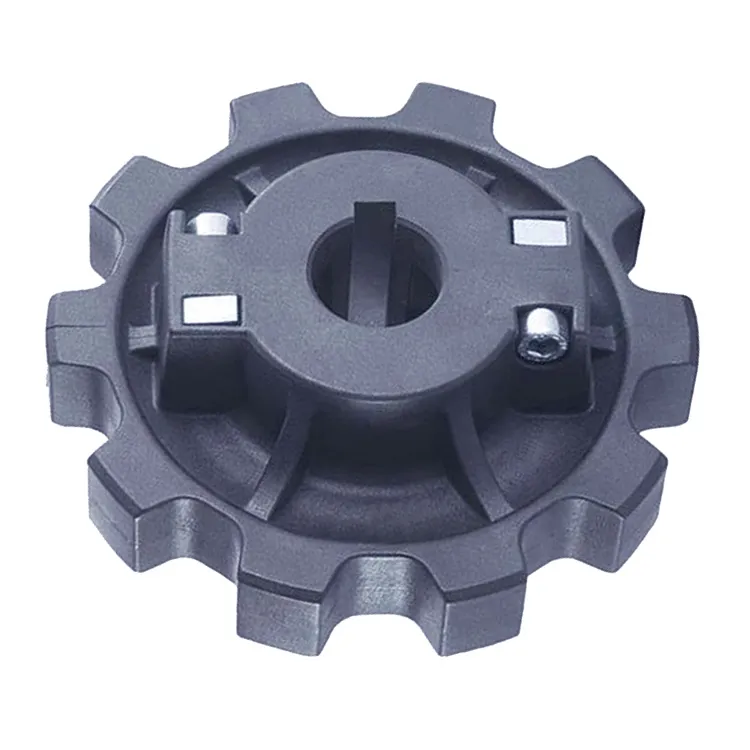

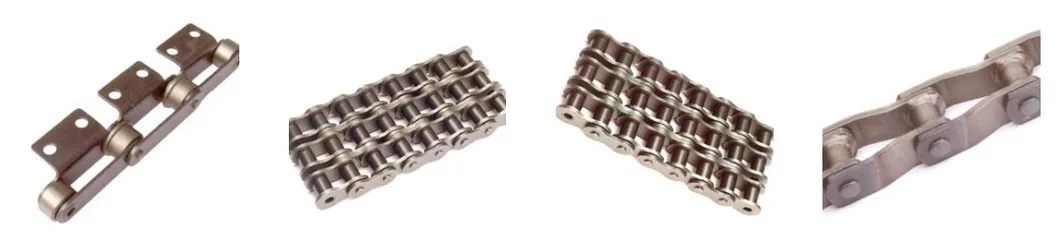

platewheels for conveyor chain	20×16mm 30×17.02mm P50 P75 P100
table top wheels	P38.1

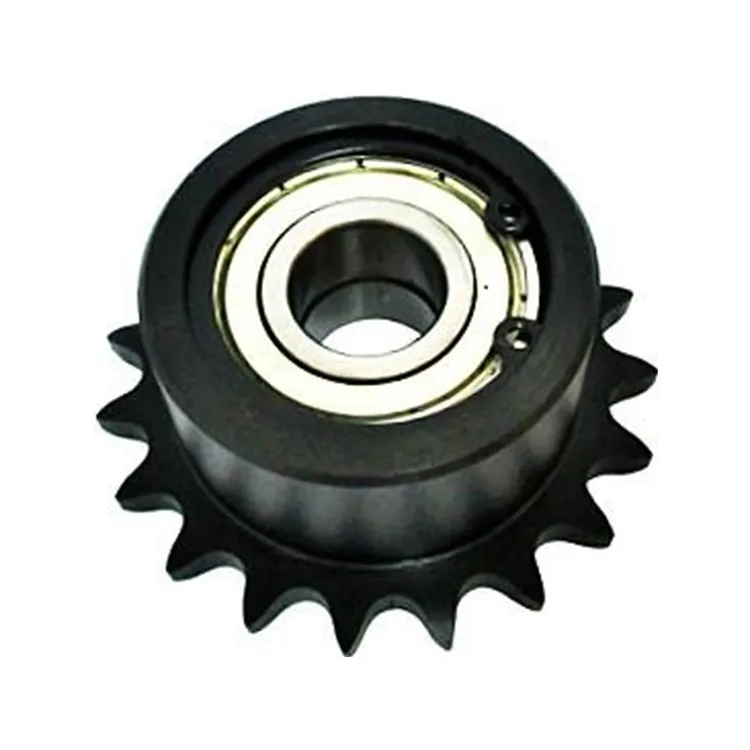

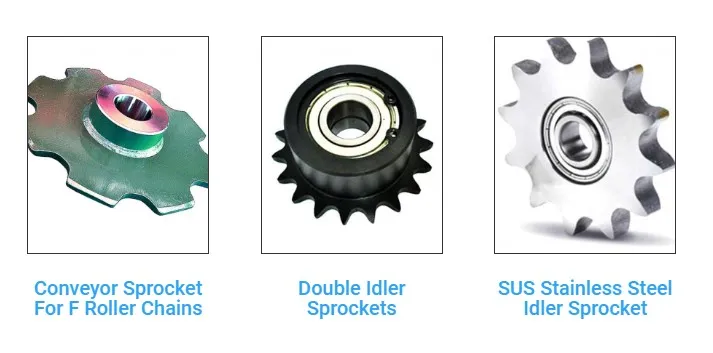

idler sprockets with ball bearing	8×1/8" 3/8"×7/32" 1/2"×1/8" 1/2"×3/16" 1/2"×5/16" 5/8"×3/8" 5/8"×3/8" 5/8"×3/8" 3/4"×7/16" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
double simplex sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
American standard sprockets
ASA stock bore sprockets	25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80-80-2 80-3 100 100-2 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200 200-2 240
finished bore sprockets	35 41 40 50 60 80 100
stainless steel sprockets	25 35 40 50 60
double single sprockets&single type Csprockets	40 50 60 80
taper bore sprockets	35 35-2 41 40 40-2 50 50-2 60 60-2 80 80-2 100 120 140 160
double pitch sprockets	2040/2042 2050/2052 2060/2062 2080/2082
sprockets with split taper bushings	35 41 40 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 120 120-2 140 160 200
sprockets with QD bushings	35 35-1 35-2 41 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 140 160 200
Japan standard sprockets
JIS stock sprockets	25 35 40 50 60 80 100 120 140 160
finished bore sprockets	FB25B FB35B FB40B FB50B FB60B FB80B FB100B FB120B
double single sprockets	40SD 50SD 60SD 80SD 100SD
double pitch sprockets	2042 2052 2062 2082 2040 2050 2060 2080
speed-ratio sprockets	C3B9N C3B10N C4B10N C4B11 C4B12 C5B10N C5B11 C5B12N C6B10N C6B11 C6B12
idler sprockets	35BB20H 40BB17H 40BB18H 50BB15H 50BB17H 60BB13H 60BB15H 80BB12H
table top sprockets	P38.1

Material available	Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.
Surface treatment	Blacking, galvanization, chroming, electrophoresis, color painting, ...
Heat treatment	High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
