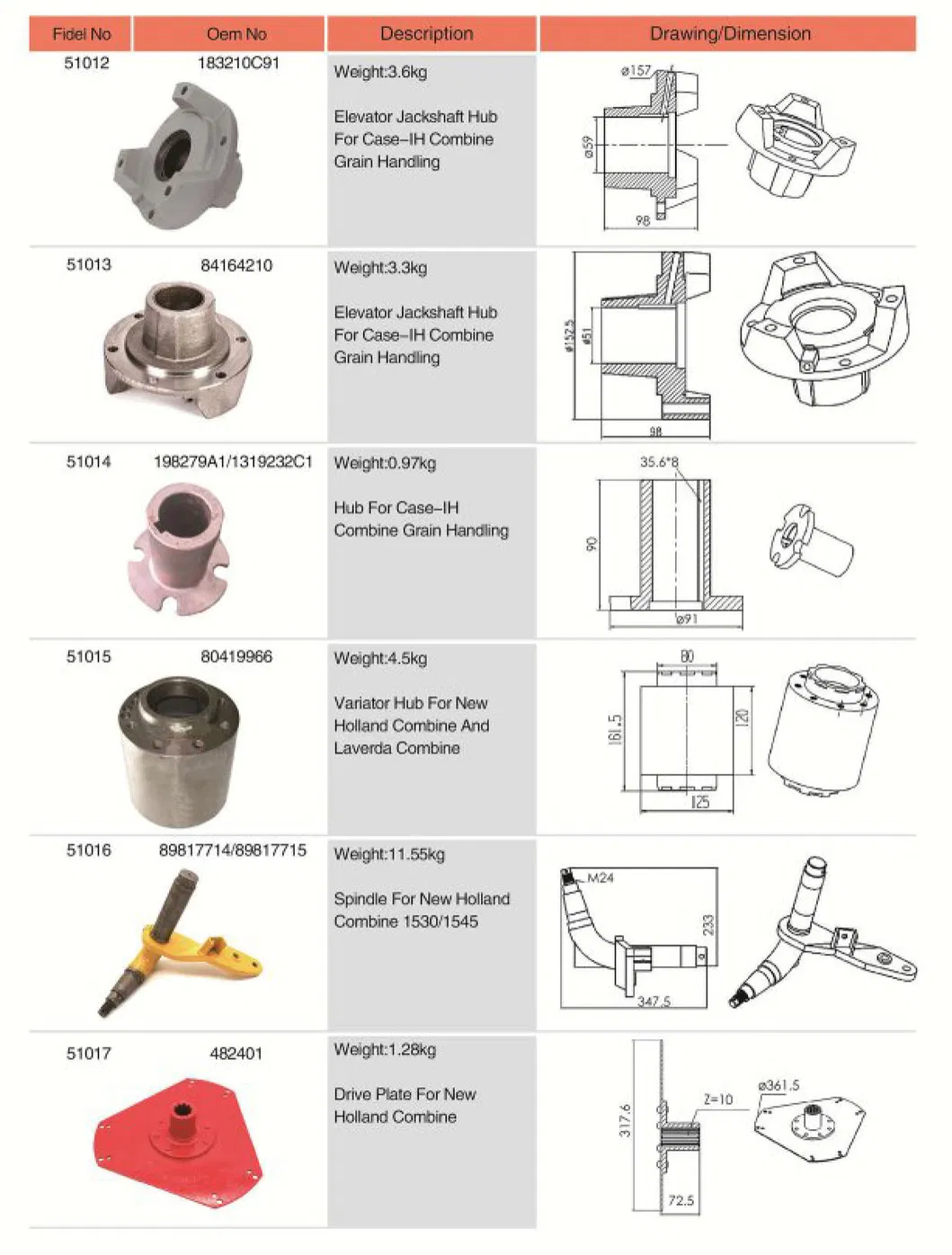

84164210 Agricultural Elevator Jackshaft Hub for Combine Grain Handling
Characteristic
If your combines lack power in the rear or front, it may be time to consider replacing the elevator jackshaft. This is especially important if you add a grain elevator to your tractor. If you want to avoid belt slippage, a proper replacement of this part is important. There are many different components, including the chain drive, Integrated jackshafts, and drive sprocket. Chain drive The chain drive for the elevator jackshaft hub of a combine is a component that rotates the shaft of the grain handling machine. The machine's shaft may be powered by an engine or another source, such as a chain or belt. The chain or belt will transfer rotational power to various crop-processing devices. During operation, the first pulley will receive power from the engine and transmit it through a belt to an input pulley. The chain drive for the elevator jackshaft hub of a combine includes a sprocket and a chain. The chain is seated on the upper and lower sprockets and extends the length of the elevator. A chain supports various paddles or baskets at regular intervals along the chain. The chain moves clean grain from trough 56 toward grain tank 66. Integrated jackshafts Integrated jackshafts for Case IH combine grain handling and are a popular feature of the new generation of agricultural machinery. These jackshafts help the combine to move grains quickly, as the rotary devices operate in tandem. The jackshaft 90 is a unitary shaft attached to the combine's power source, such as an engine, while a belt or chain connects its input and output wheels. The dealer network offers the latest equipment, knowledgeable service technicians, and quality parts inventory. These dealers also offer a full range of ag solutions, including integrated jackshafts for grain handling. Case IH dealers are dedicated to helping your operation succeed. They offer exceptional service and training to help you maximize your productivity. In addition to Case IH equipment, Case IH dealers offer various agronomy and parts support. Drive sprockets If you are having trouble with your combine's grain handling system, the drive sprockets may be the cause. These sprockets are crucial for smooth operation and efficient grain handling. They are easily replaced by simply unscrewing six bolts and replacing the sprocket. In addition, they help prevent excessive cylinder loss and enhance grain quality. You can also adjust the cylinder losses on the IH 914. When using the IH 914, fill the grain tank to approximately 40%. You should only fill the grain tank to the halfway point, as a full cylinder may not always be safe. Then, install a safety chain on the hitch and put it at the rear of the combine before removing the header. Drive sprocket A combined elevator is made up of several components. The elevator housing supports an intermediate axis. The axes rotate and move the grain within the elevator. The chain that lifts the grain is connected to a drive sprocket. At the other end of the elevator, a chain supporting various paddles or baskets may be seated on a driven sprocket. The elevator jackshaft hub is attached to the drive sprocket. It may include various tensioning pulleys that support power transmission through chains or belts. The combination of pulleys is usually fixed to the jackshaft hub. The drive sprocket for the elevator jackshaft hub of the combined grain handling system comprises a pinion and three sprockets. A combine's elevator jackshaft includes a drive sprocket and a sprocket. The sprocket rotates circularly and is mounted on the shaft. It is connected to other crop processing devices by belts or chains. Bearings support the shaft itself.
