L-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox
  • L-25A Pto Generators GearboxL-25A Pto Generators Gearbox

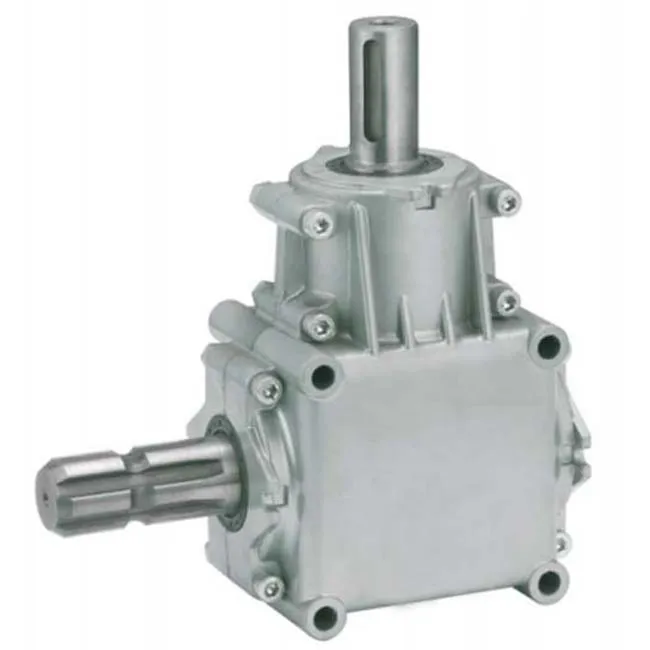

L-25A Pto Generators Gearbox

Product DescriptionAluminium casinginput 1 inch rounf with key path + transverse hole for lockoutput fan 1 inch diameterlateral output at 1.5:1 (speed reduction) 1 inch x 15 splineCan also replace 9.124.871.00 or 9.124.871.10 or 9.124.380.00 (older model but exactly the same size)Sold and sent witho......
Product Description
  • Aluminium casing
  • input 1 inch rounf with key path + transverse hole for lock
  • output fan 1 inch diameter
  • lateral output at 1.5:1 (speed reduction) 1 inch x 15 spline
  • Can also replace 9.124.871.00 or 9.124.871.10 or 9.124.380.00 (older model but exactly the same size)
  • Sold and sent without oil ( capacity of approximately 0.35L of SAE90)Agricultural 1: 1 L-25A Pto Generators Gearbox
Product Parameters
Description
Comer gearboxes cpl. L-25A 1:1

Application
  • Various (agricultural) applications
  • Mowers
  • Chemical fertiliser spreaders
  • Band saws

Consists of
  • Gearbox
  • Without oil

Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using for the first time, replace the oil after 50 operating hours

Long description
  • Application:
  • Various (agricultural) applications
  • Mowers
  • Chemical fertiliser spreaders
  • Band saws
  •
  • Consist of:
  • Gearbox
  • Without oil
  •
  • Technical information:
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using for the first time, replace the oil after 50 operating hours

Max. input power
11 kW

Max. output torque
189 nm

Contains oil
No

Max. oil capacity
0.35 l

Max. oil change interval
500 h

Oil SAE viscosity grade
80W-90

Housing material
Aluminium

Weight
4.1 kg

Gear arrangement
1 - 2

Ratio
1 : 1

Input shaft
Z

Shaft X
25 (B)

Shaft Z
1 3/8" (6) (C)



Company Profile

Agricultural 1: 1 L-25A Pto Generators Gearbox

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.Agricultural 1: 1 L-25A Pto Generators Gearbox

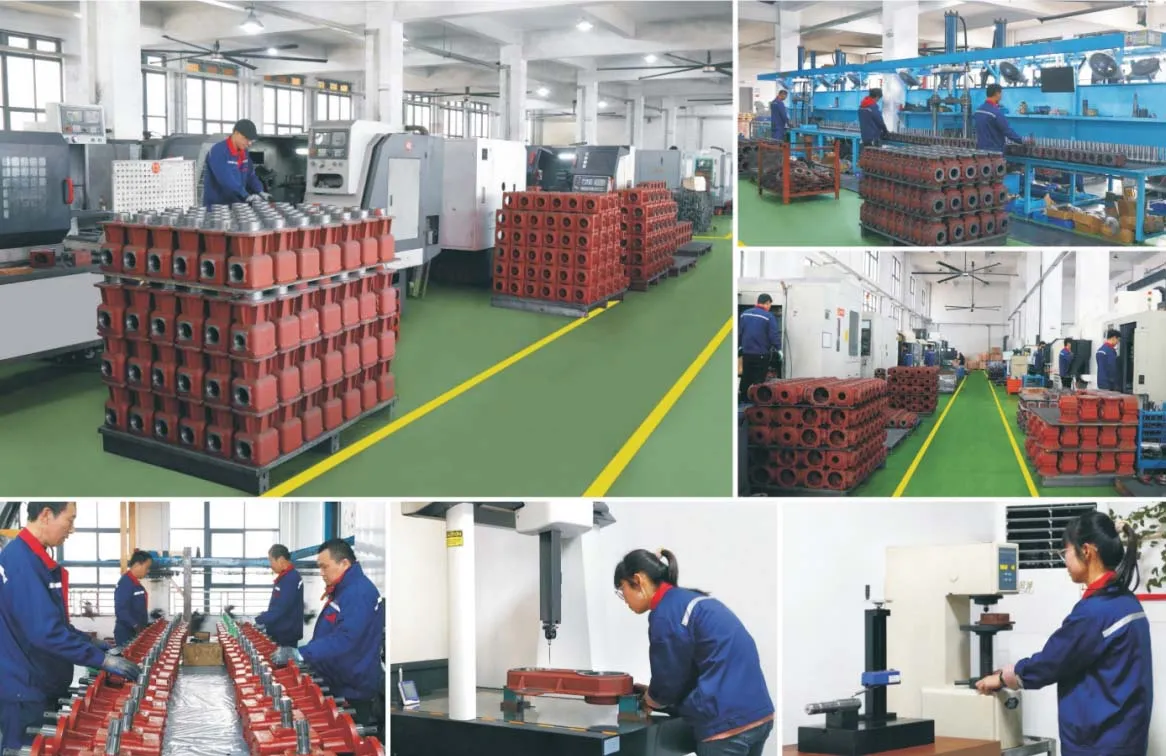

Our Equipments

Agricultural 1: 1 L-25A Pto Generators Gearbox
Certification
Agricultural 1: 1 L-25A Pto Generators Gearbox

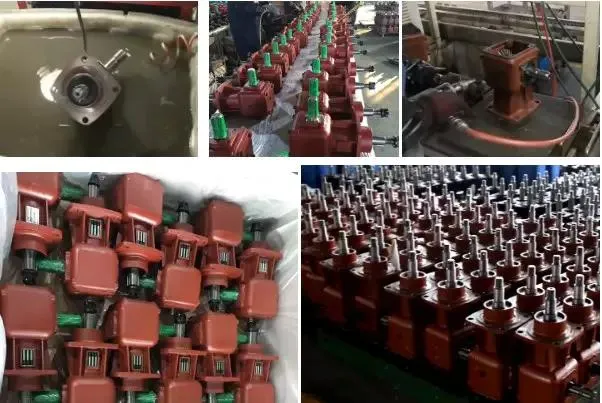

Packaging and Shipment
Agricultural 1: 1 L-25A Pto Generators Gearbox
Related products

PTO Shaft
Agricultural 1: 1 L-25A Pto Generators Gearbox

Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
Agricultural 1: 1 L-25A Pto Generators Gearbox



Hot Tags: Agricultural 1: 1 L-25A Pto Generators Gearbox, Pto Generators Gearbox, L-25A Gearbox
