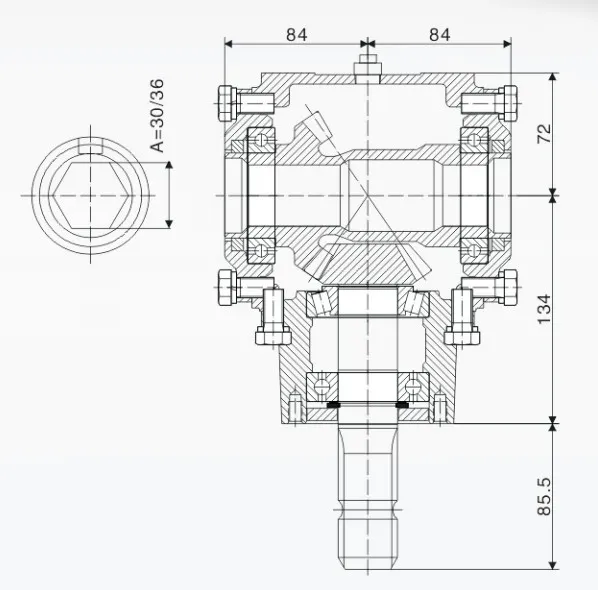

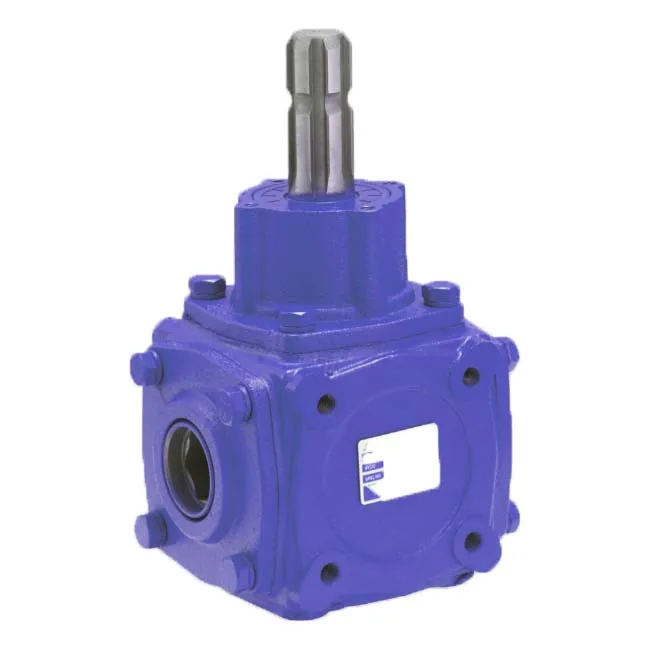

Lawn mower gearbox work to administer a transfer of speed and torque through their internal gear rotation, helping the overall performance of your rotary cutter. This EP-9.259 gearbox operates at 40 HP. The housing is constructed from durable ductile iron, and the smooth input shaft measures 1-3/8 inches. It has a beveled type of gear, with the gear ratio measuring 1:1.46. Designed for use with 4-foot, 5-foot, and 6-foot rotary cutters, Lawn mower gearboxes has 4 bolt holes measuring 5/8 inch on a 6-3/4 inch bolt circle for installment.
| ITEM | EP-9.259 Lawn mower gearbox |
| Ratio | 1.46:1 |
| Teeth | 19/13 |
| 5.0 | |
| Power(HP) | 30 |
| Rated Input | 540rpm |
| Input/Output description | 1 3/8 Z6 13/8 Z6 OPtic axis |
| Weight(N.W) | 14Kg |
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

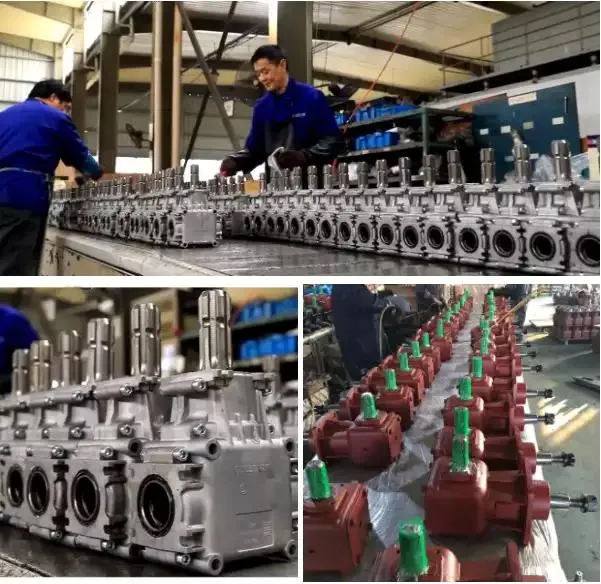

Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
