Weld Bolt Adapters for Taper Lock Bushings

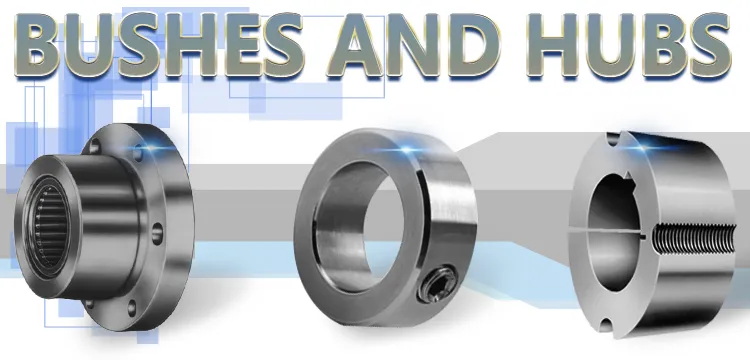

bushes and hubs Bore Weld Bolt On adapters  Disassembling for plate wheels transmission Taper Lock Flanged QD Bushings with Split Block Steel

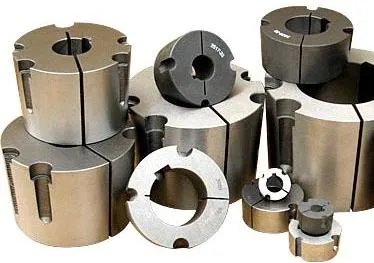

A) Taper Bush : 1008,1108,1210,1610,1615,2012,2517,3020,3030,3535,4030,4040,5050.
Different bores with keyway are available in metric and in inches.
B) Welding hubs for taper bushes
a. Taper type K weld-on hubs; b. Taper type W-WA weld-on hubs; c. Taper type F weld-on hubs;
d. Taper type S weld-on hubs; e. Taper type W weld-on hubs; f. Taper type WH weld-on hubs;
C) Taper adapters
1215B, 1615B, 2517B, 2525B, 3030B, 3535B, 4040B, 4545B
(Note: Stanard for taper bushing weld-on hubs adpot USA DODGE Co. and Martin standard. Any production and sales should be authorised. )
D) Taper bored bolt-on hubs
SM1210, SM1610-1, SM1610-2, SM2012, SM2517, SM30-1, SM30-2;
E) XT Bushing
XTB15, XTB20, XTB25, XTB30, XTB35, XTB40, XTB45, XTB50, XTB60, XTB70, XTB80, XTB100, XTB120.
F) XH hubs
XTH15, XTH20, XTH25, XTH30, XTH35, XTH40, XTH45, XTH50, XTH60, XTH70, XTH80, XTH100, XTH120;
XTH15F4, XTH15F5, XTH15F6, XTH15F8; XTH20F5, XTH20F6, XTH20F8, XTH20F10, XTH20F12; XTH25F6, XTH25F8, XTH25F10, XTH25F12;
G) Split taper bushings
G, H, P1, P2, P3, B, Q1, Q2, Q3, R1, R2, S1, S2, U0, U1, U2, W1, W2, Y0.
H)Steel hubs for split taper bushings
HG1, HH1, HCH1, HP1, HCP1, HP2, HB1, HB2, HQ1, HCQ1, HQ2, HR1, HR2, HS1, HS2, HU0, HU1, HU2, HW1;

I)QD bushings
JA, SH, SDS, SD, SK, SF, E, F, J, M, N, P;
J)QD type weld on hubs
SH-A, SDS-A, SK-A, SF-A, E-A, F-A, J-A, M-A, N-A;
K)FHPK bushings
FHP23K, FHP1K, FHP8K, FHP2K, FHP3K, FHP9K, FHP4K, FHP10K, FHP5K, FHP20K, FHP12K, FHP13K, FHP1 style="color:#5bc0de;" 4K, FHP15K,
FHP16K, FHP17K;
L)FHP bushings
FHP18, FHP21, FHP22, FHP19, FHP23, FHP6, FHP7, FHP1, FHP8, FHP2, FHP11, FHP3, FHP9, FHP4, FHP10, FHP5, FHP20, FHP12, FHP13, FHP14,
FHP15, FHP16, FHP17;
M)Type "B"Hubs
HB40, HB50, HB60, HB80, HB100;

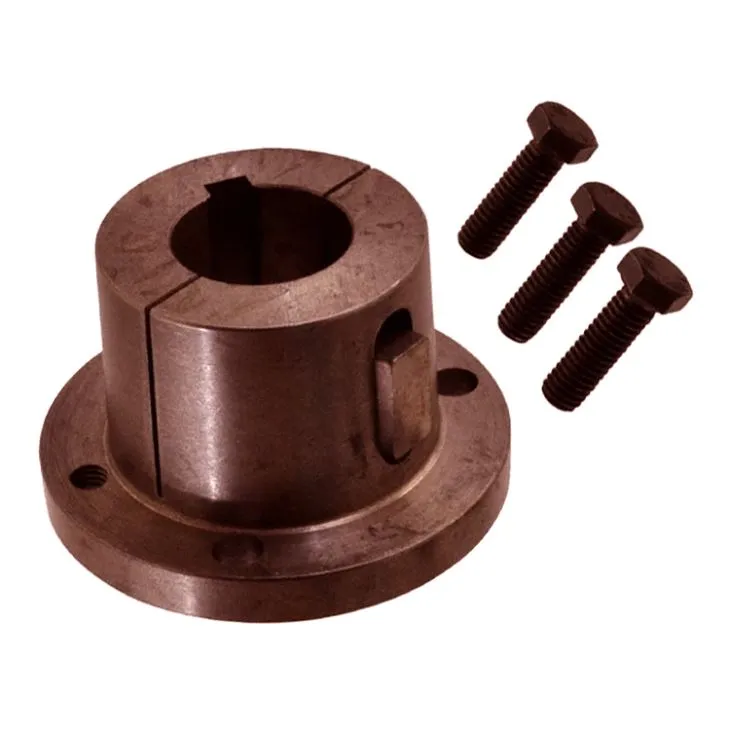

High precision Taper Lock Bushings with Split Bushes / Hub G H P1 P2 B Q1 Q2 Q3 R1 R2 S1 S2 U0 U1 U2 W1 W2 Y0

Taper Lock Bushings with Split Bushes, Taper Bushing, China Taper Bushing
Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer's demand.
Taper Lock Bushings with Split Bushes, Taper Bushing, China Taper Bushing
1, High standardization
2, High precision
3, Compact structure
4, Easy assembling
5, Highest torque-carrying capacity
6, Double split barrel assure true concentricity -grips the shaft with positive clamp fit

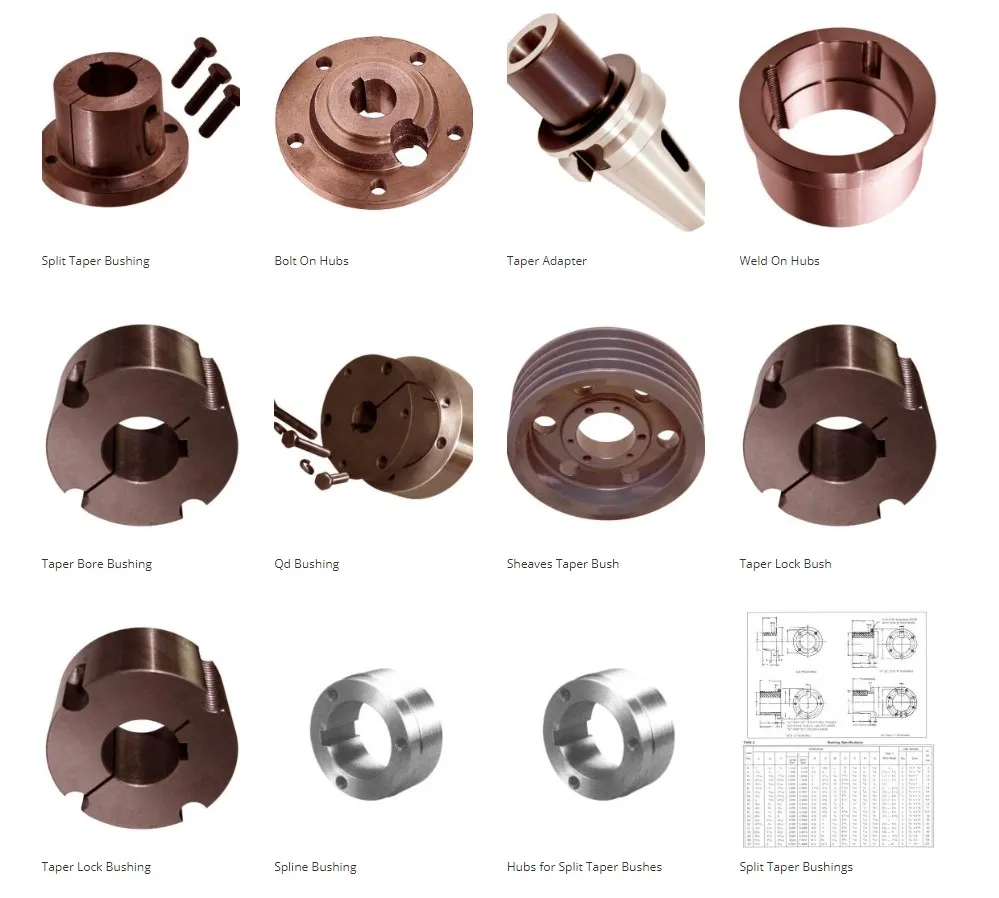

China manufacturer of bush & hub, Specialist in: taper bushes, qd bushes, taper bushings with split, weld on hubs, steel hubs, taper bore adapters.

Applications:
Keyed to both shaft and hub. External key provides positive drive with no torque on the cap screws
