WT-170 CNC Machining Accessories

WT-170-2W cnc machining center trade accessories for numerical control machineCharacteristic Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-170-2WSegmentation accuracy15 ″Disk DiameterΦ170mmRepeat ......

Send Inquiry

Product Description

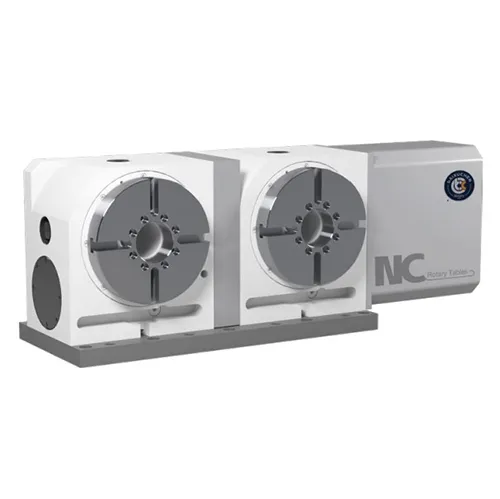

WT-170-2W cnc machining center trade accessories for numerical control machine

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

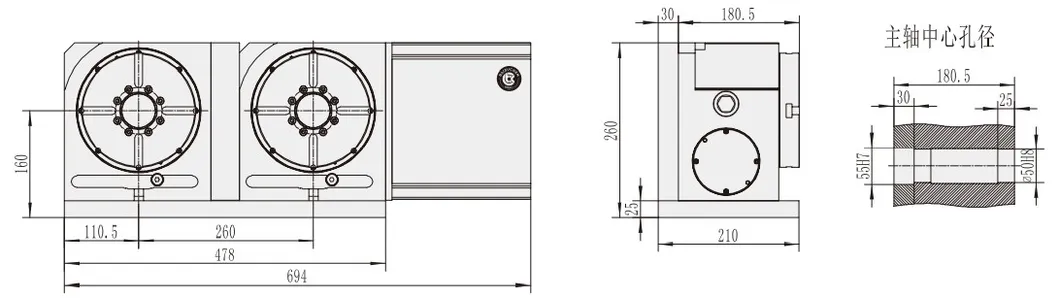

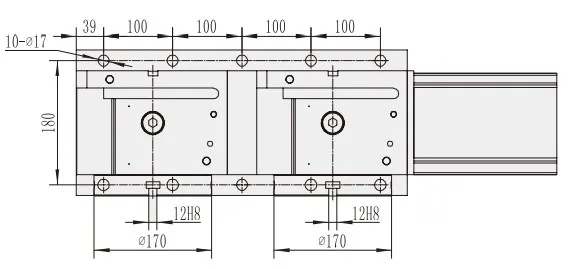

Product Model	WT-170-2W	Segmentation accuracy	15 ″
Disk Diameter	Φ170mm	Repeat positioning	4 ″
Center Diameter	Φ55H7mm	Locking Mode	31kg.m
Spindle Hole	Φ50mm	Servo Motor	β8is;HF-104
Center Height	160mm	Speed Reduction Ratio	1:90
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	14H7mm	Allowable Work Inertia	5.4kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	18Kg.m
Weight(Without Motor)	150Kg	Vertical	80KG
Center Distance	260mm	Tailstock applied	160KG

Wt-170-2W CNC Machining Center Trade Accessories for Numerical Control Machine

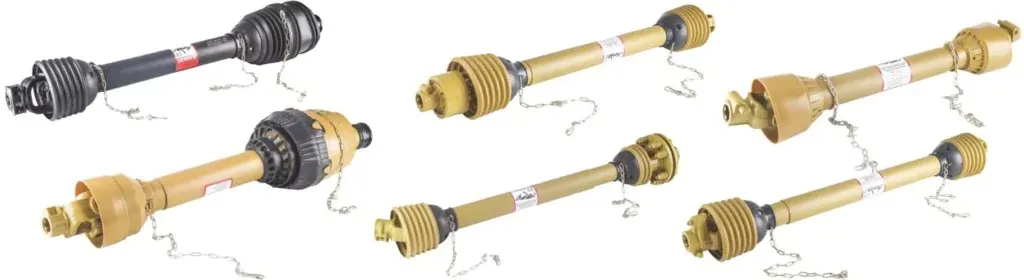

We Also Supply PTO Shafts & Agricultural Gearboxes
