Product Description

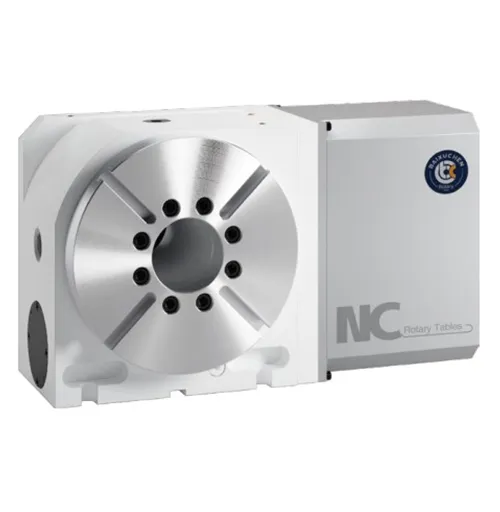

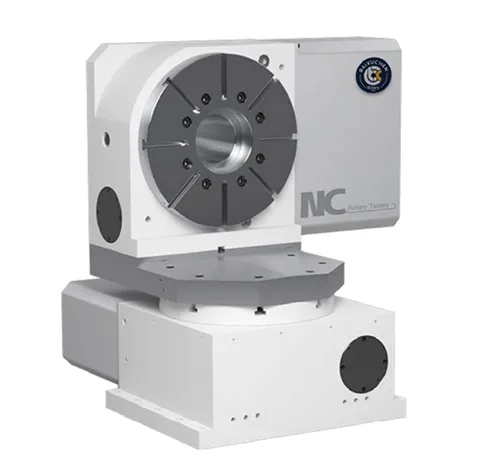

WT-255 cnc machining center accessories for numerical control machine

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

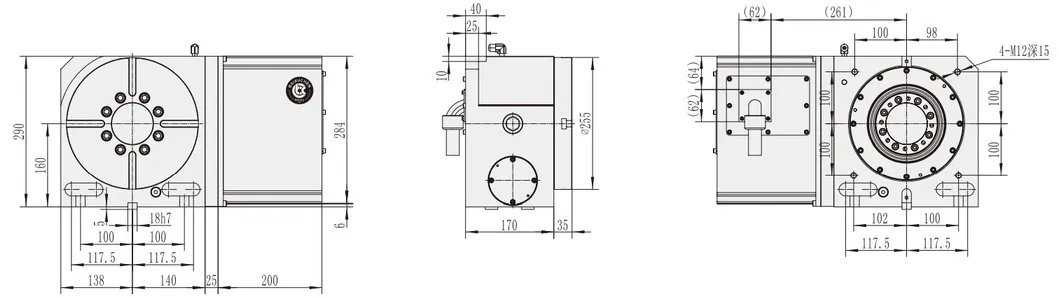

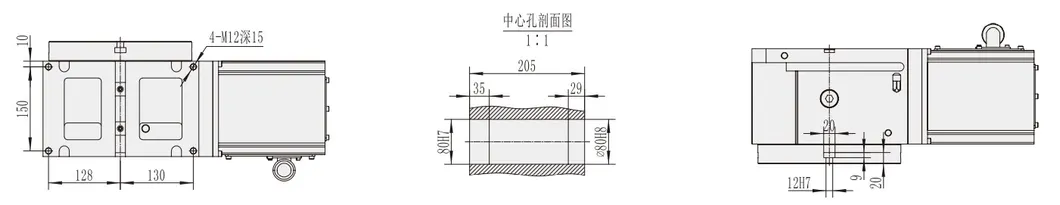

Product Model	WT-255	Segmentation accuracy	15 ″
Disk Diameter	Φ255mm	Repeat positioning	4 ″
Center Diameter	Φ80H7mm	Locking Mode	70kg.m
Spindle Hole	Φ80mm	Servo Motor	β8is;HF-154
Center Height	160mm	Speed Reduction Ratio	1:120
T-Slot Width	12H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	20.3kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	55Kg.m
Weight(Without Motor)	105Kg	Vertical	100KG
Horizontal	250KG	Tailstock applied	250KG

Wt-255 CNC Machining Center Accessories for Numerical Control Machine

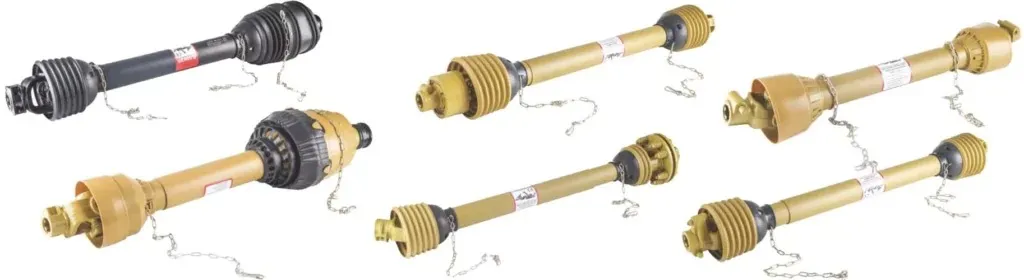

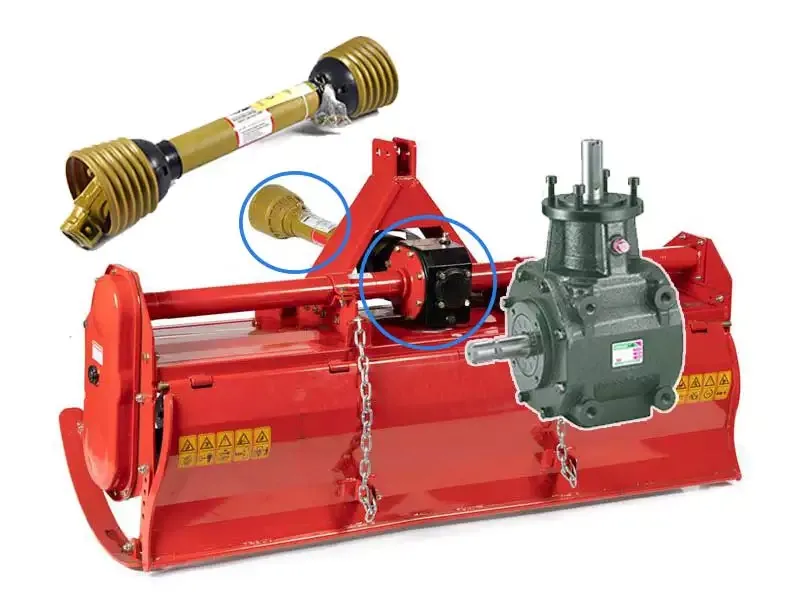

We Also Supply PTO Shafts & Agricultural Gearboxes
