Product Description

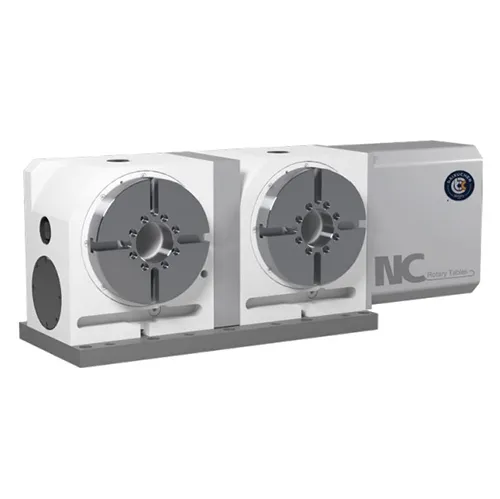

WT-400 chinese cnc vertical machining center price cnc machining center accessories

Characteristic

Large aperture design High segmentation accuracy high rigidity and high performance

High efficiency and strong braking structure system

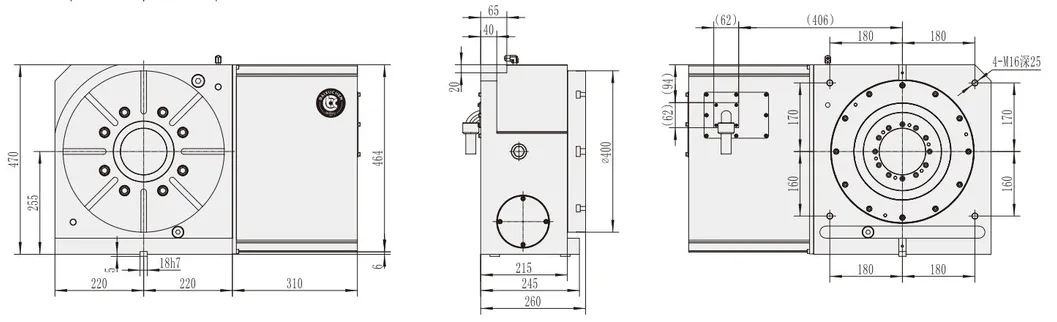

Product Model	WT-400	Segmentation accuracy	15 ″
Disk Diameter	Φ400mm	Repeat positioning	4 ″
Center Diameter	Φ150H7mm	Locking Mode	200kg.m
Spindle Hole	Φ115mm	Servo Motor	β22is;HF-204
Center Height	255mm	Speed Reduction Ratio	1:120
T-Slot Width	14H7mm	Maximun Speed	33.3r.p.m
Positioning Button	18H7mm	Allowable Work Inertia	100kg.cm.sec2
Min lncrement	0.001°	Allowable Cutting Torque	170Kg.m
Weight(Without Motor)	320Kg	Vertical	200KG
Horizontal	500KG	Tailstock applied	500KG

Wt-400 Chinese CNC Vertical Machining Center Price CNC Machining Center Accessories

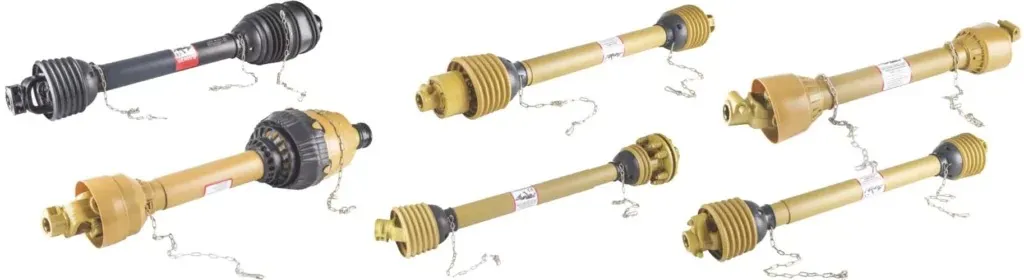

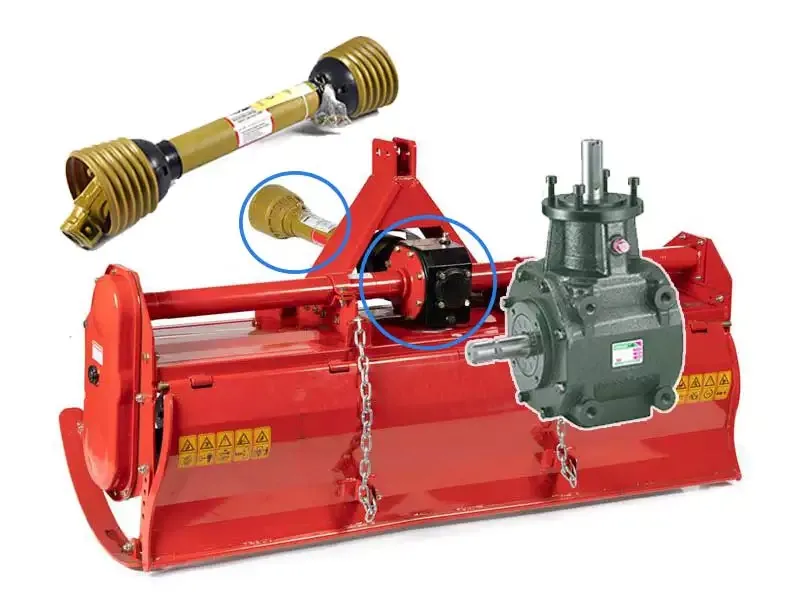

We Also Supply PTO Shafts & Agricultural Gearboxes
